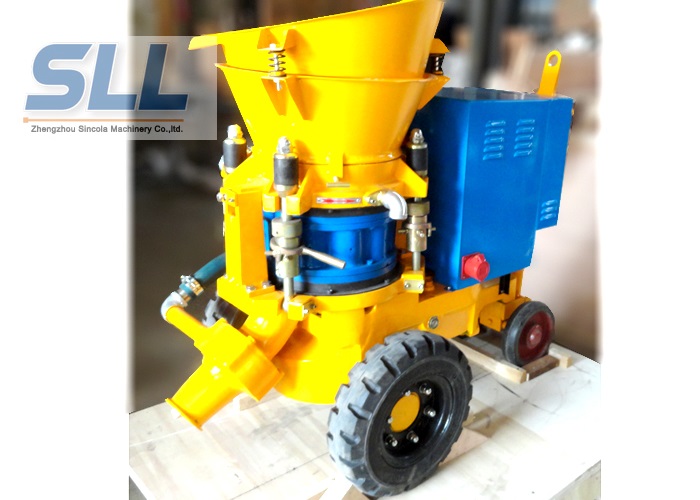

Stable Performance SPZ series Electric Type Shotcrete Machine rotor type

Detailed Description of Dry Mix Shotcrete Machine:

Dry Mix Shotcrete Machine, also name Gunite machine, uses a different process than wet process shotcrete. Gunite machines use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.

Technical specification of Electric Tpye Dry Mix Shotcrete Machine:

Machine motor voltage, we can customize according to client local electric power supply.

Shotcrete Machine Parts:

Rubber Sealing Plate (upper and lower)

Rotor steel plate

Rubber Chamber

Cone Casing Pipe

Rubber Elbow

Spraying Nozzle

Nozzle base

Joint

Clamp

Convey hose

Air hose

Features of SPZ Series Dry Mix Shotcrete Machine:

1. SPZ Series Dry Shotcrete Machine can be driven by electric motor, diesel engine, and pneumatic motor.

2. Dry Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, control panel, electric motor (diesel engine, or pneumatic motor) etc.

3. Dry Shotcrete Machine have advanced technology, compact structure, convenient operation, stable performance and long service life.

Advantage of our electric type dry mix shotcrete machine:

Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.

We have the professional production line for the main wearing parts about wet shotcreting machine:

1.Delivery Rubber Hose: More durable than normal kind rubber pipe, weaved by the quality steel wire, high resist compression ability, high wear resistance.

2.Rubber Sealing Plate: Adopt nature rubber, working time can meet 400m3.For the normal kind can only meet 130m3.

3.Rotor Disk: Casting by quality carbide tools, The working time is 3-5 times than normal kinds, and can meet 600-800m3,it's prefect for the rotor type wet shotcreting machine.

global agent recruitment.pdf

Our machinery equipment:

Dry Mix Shotcrete machine:

SPZ-3, 3m3/h, drive type: electric motor, diesel engine, and air motor.

SPZ-5, 5m3/h, drive type: electric motor, diesel engine, and air motor.

SPZ-7, 7m3/h, drive type: electric motor, diesel engine, and air motor.

SPZ-9, 9m3/h, drive type: electric motor, diesel engine, and air motor.

We also have wet shotcrete machine, wet shotcrete pump, concrete mixer, concrete pump, concrete mixer pump, cement mortar spraying plaster machine,mortar pump,mortar mixer, cement grout mixer, cement grouting pump,industry hose pump,mud slurry pump,etc.

Welcome inquiry of our shotcrete machine or other similar machinery equipment..

Please confirm:

1. What is your output capacity requirement?

2. Which kind drive type do you need?

If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome
